World Trade Center Memorial

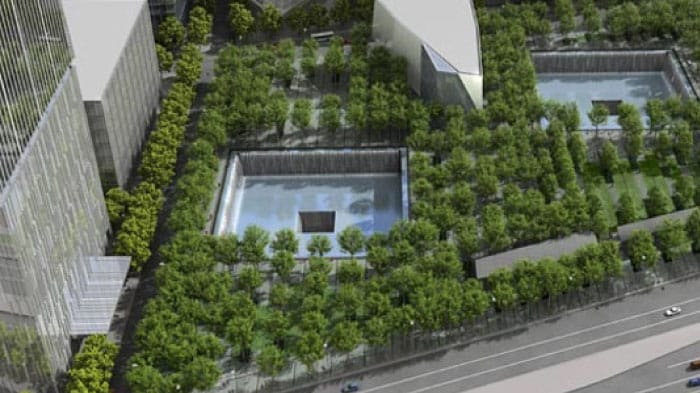

he Memorial design, created by architect Michael Arad and landscape architect Peter Walker, was selected from a design competition that included more than 5,200 entrants from 63 nations.

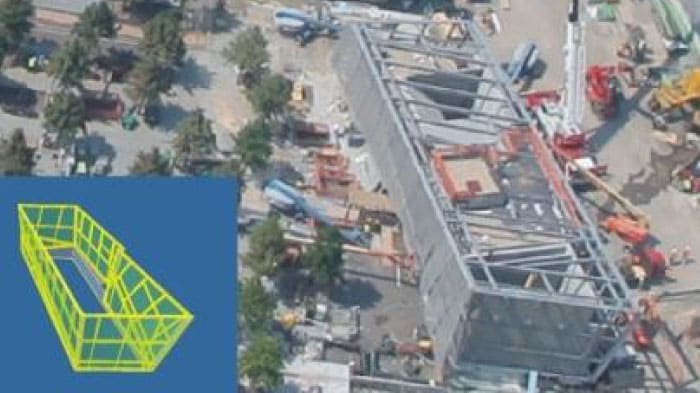

The proposed systems were fully designed with BIM. They include horizontal & vertical attachments along with fabric mesh fastened to the perimeter of the two main steel structures.

Services Provided:

• Full BIM Virtual Construction of the Meshes

• Digital Fabrication and Installation Shop Drawings

• Automated Fabrication of Structural Parts and Brackets

Size: 13,000 sf | 1.208 m2

Location: New York, NY

Client: Cambridge Architectural
