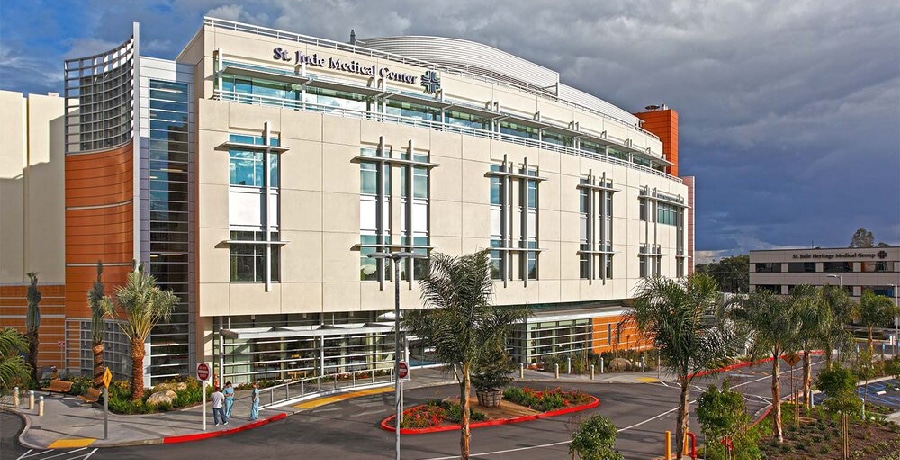

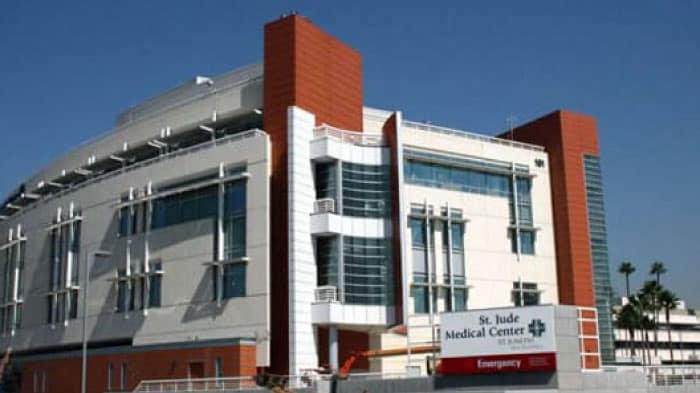

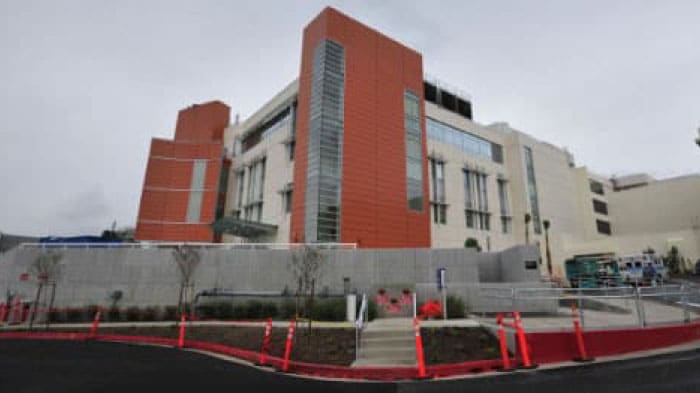

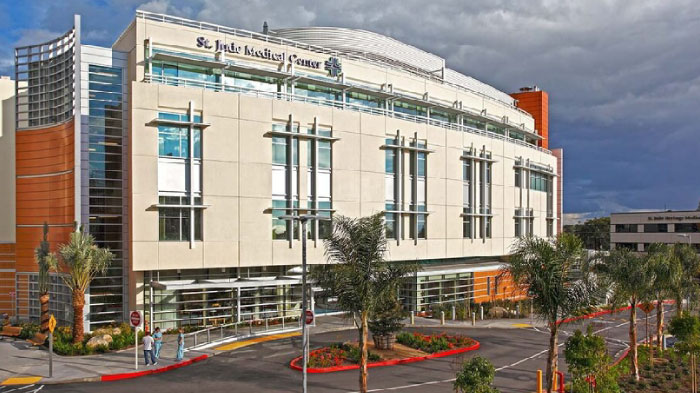

Remodeling was focused on the surgery area in the basement level of the five-story health center. The waffle slab and low clearances in the ceiling required 3D Modeling of both existing conditions and new installations, followed by an exhaustive Coordination process.
Location: California - United States
Client: United Mechanical Consultants Inc
Size: 26,000 sf | 2.415 m2
Services Provided:

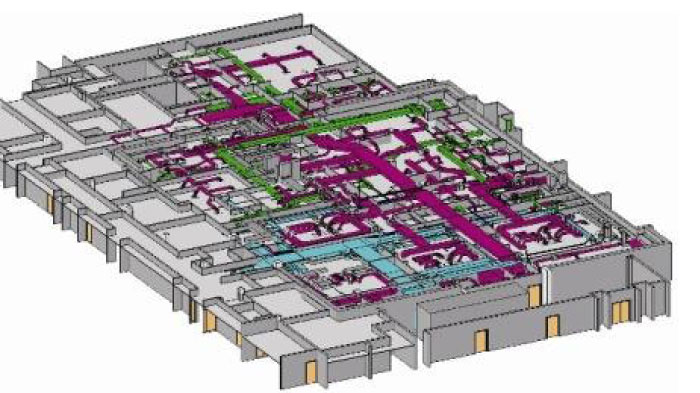

- 3D Architectural Model of Basement Level and Waffle Slab at First Floor Level

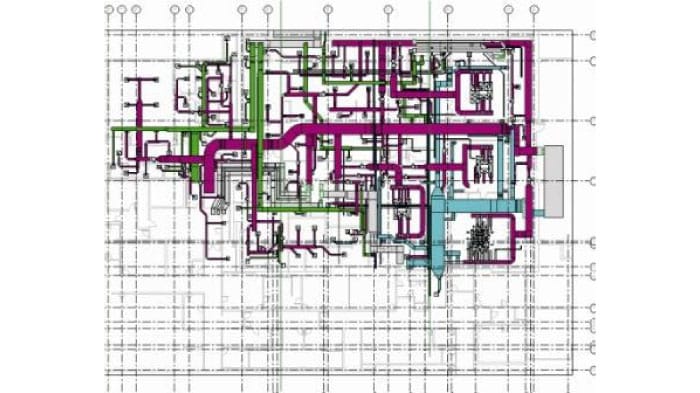

- Plumbing Model for New Sanitary Drainage, Domestic Water Supply, Medical Gases, and Vacuum Systems
- Mechanical Air Balance and Ductwork Layout
- 3D Coordination
